PROJECTED CAPACITIVE 10.4 - 65"

GreenTouch Projected capacitive touch screen, 10.4 inchese to 65 inches

Overview

GreenTouch G+G projected capacitive touch technology is with fast and sensitive response, the design with frame (without frame is optional) makes it looks professional and generous. The G+G model is designed for high-intensity and high-frequency business environments.

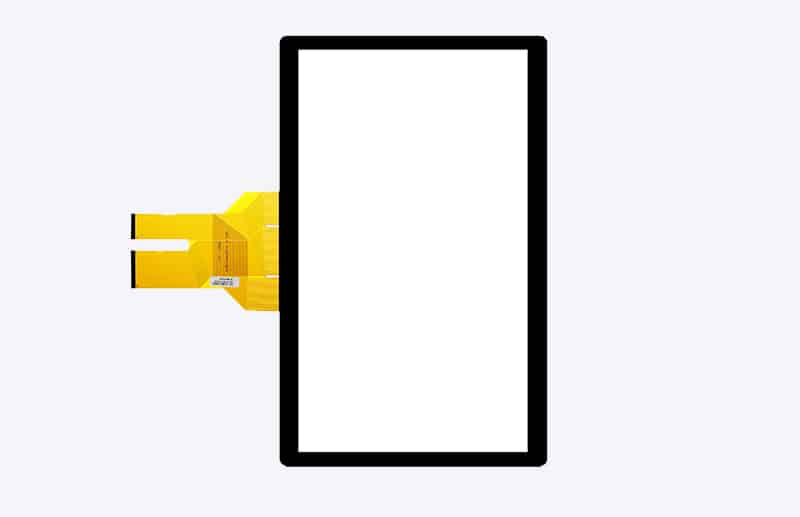

projected capacitive screen 10.4 - 65 inch description

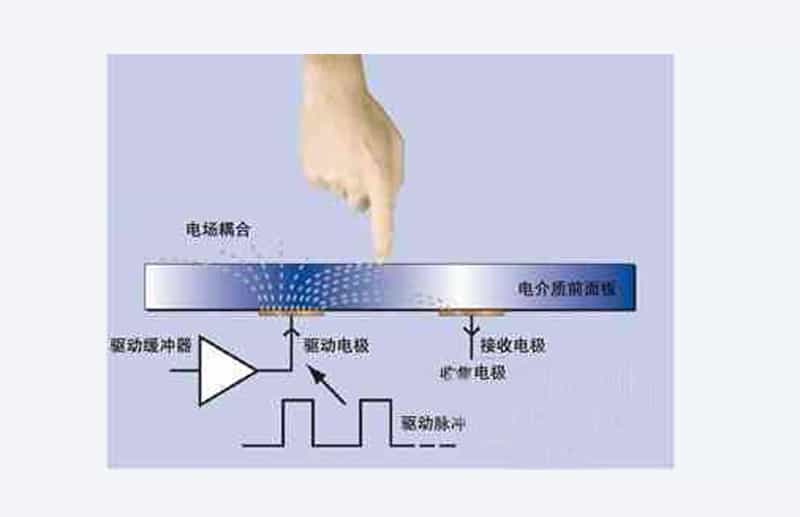

projected capacitive screen 10.4 - 65 inch operation principle

Operation Principle

The surface of the capacitive screen is coated with a transparent conductive layer ITO, the voltage is connected to the four corners, and the electric charge is distributed on the surface of the screen to form a uniform electric field. When the screen is touched by the hand, the human body acts as a pole of the coupling capacitor, and the current is collected from the four corners of the screen to form another coupling capacitor. The pole, the controller calculates the relative distance of the current to the touch position to obtain the coordinate value at the touch.

Support customized:

GreenTouch provides many custom options, such as: screen size, surface glass thickness, double-sided conductive glass functional film thickness and coating materials and surface glass processing technology.

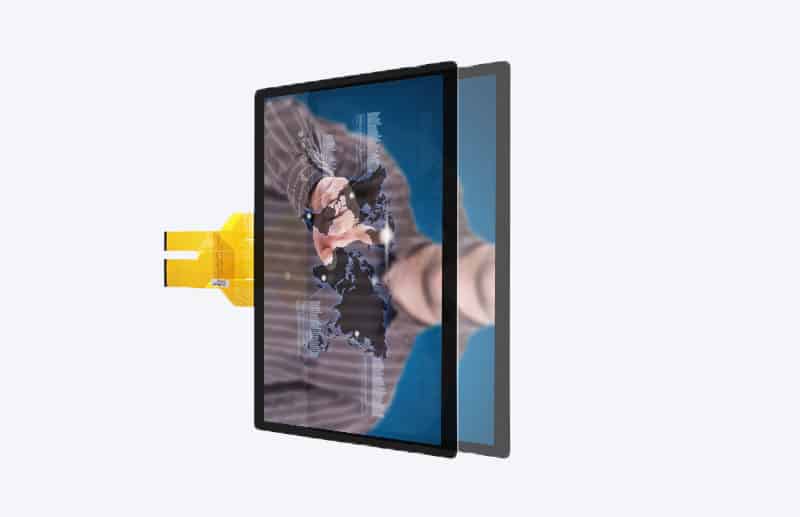

projected capacitive screen 10.4 - 65 inch support customized

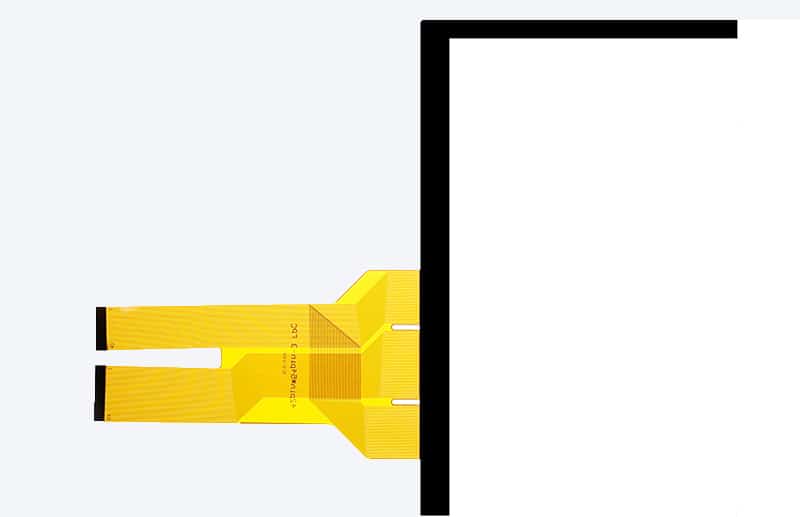

projected capacitive screen 10.4 - 65 inch product packaging

Product packaging:

The capacitive screen is divided into two layers of carton packaging inside and outside. Put the EPE foam into the bottom of the inner carton, place the capacitive screen into the EPE foam, and then cover the touch screen with conventional foam. After the inner carton is sealed, the five inner carton boxes are placed in a large outer casing, and the fragile label is attached to the outer carton. Touch screen size, how much determines how to package

Product Drawings:

10.4"

  • 10.4 inch capacitive screen
  • product ratio: 4:3,
  • thickness: 2.7mm,
  • surface hardness: 6H, short-side outlet line
  • Product shape: 290mm * 220.5mm
  • Product window: 236.2mm * 178.4mm. FPC line length is 99.86mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

12.1"

  • 12.1 inch capacitive screen
  • Product ratio: 4:3
  • Thickness: 2.7mm
  • Surface hardness: 6H, Long side out line
  • Product shape: 290mm * 220.5mm
  • Product window: 246mm * 184.5mm. FPC line length is 67.85mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

13.3"

  • 13.3 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 2.9mm
  • Surface hardness: 6H, Long side out line
  • Product shape: 323.4mm*195mm
  • Product window: 293.4mm*165mm. FPC line length is 67.85mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

15.0"

  • 15 inch capacitive screen
  • Product ratio: 4:3
  • Thickness: 2.4mm
  • Surface hardness: 6H, Long side out line
  • Product shape: 346.08mm*270.02mm
  • Product window: 305mm*229.01mm.
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

15.6"

  • 15.6 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 3.1mm
  • Surface hardness: 6H, Long side out line
  • Product shape: 387mm * 231mm
  • Product window: 344mm * 194mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

17"

  • 17 inch capacitive screen
  • Product ratio: 4:3
  • Thickness: 2.4mm
  • Surface hardness: 6H, Long side out line
  • Product shape: 377mm*308mm
  • Product window: 338.92mm*271.34mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

18.5"

  • 18.5 inch capacitive screen
  • product ratio: 16:9,
  • thickness: 2.0mm,
  • surface hardness: 6H, long side outlet line, FPC line length: 126.76mm
  • Product shape: 456.75mm*227.25mm
  • Product window: 408.7mm*229mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

19.0"

  • 19.0 inch capacitive screen
  • Product ratio: 4:3
  • Thickness: 2.7mm
  • Surface hardness: 6H, Long side out line 118mm
  • Product shape: 421mm*346mm
  • Product window:379.32mm*304.06mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

21.5"

  • 21.5 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 2.4mm
  • Surface hardness: 6H, Long side out line, FPC line length is 121.42mm
  • Product shape: 532.5mm*325.6mm
  • Product window: 475.5mm*266.6mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

22.0"

  • 22 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 3.1mm
  • Surface hardness: 6H, Long side out line, FPC line length: 133mm
  • Product shape: 550mm * 376mm
  • Product window: 475.84mm * 298.1mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

23"

  • 23 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 4.9mm
  • Surface hardness: 6H, Long side out line, FPC line length: 124mm
  • Product shape: 551.18mm*334.42mm
  • Product window: 511.18mm*288.42mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

23.6"

  • 23.6 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 4.3mm
  • Surface hardness: 6H, Long side out line,  FPC line length: 121.64mm
  • Product shape: 572.6mm*341.6mm
  • Product window: 522.1mm*294.4mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

27"

  • 27 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 2.4mm,
  • Surface hardness: 6H, short-side outlet line
  • FPC line length: 152.42mm
  • Product shape: 646.5mm*386.8mm
  • Product window: 597.6mm*336.15mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

32"

  • 32 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 3.1mm,
  • Surface hardness: 6H, long-side outlet line
  • FPC line length: 146.7mm
  • Product shape: 757.12mm*450.6mm
  • Product window: 699.4mm*393.8mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

42"

  • 42 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 4.3mm,
  • Surface hardness: 6H, long-side outlet line
  • FPC line length: 147.5mm
  • Product shape: 1052.6mm * 645.2mm
  • Product window: 930.2mm * 524.2mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

43"

  • 43 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 5.35mm,
  • Surface hardness: 6H, long-side outlet line
  • FPC line length: 146.83mm
  • Product shape: 997.5mm*601.22mm
  • Product window: 943.5mm*531.72mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

55"

  • 55 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 7.0mm,
  • Surface hardness: 6H, long-side outlet line
  • FPC line length: 116.75mm
  • Product shape: 1370.8mm*841.6mm
  • Product window: 1209.6mm*680.4mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

65"

  • 65 inch capacitive screen
  • Product ratio: 16:9
  • Thickness: 6.05mm,
  • Surface hardness: 6H, long-side outlet line
  • FPC line length: 149.12mm
  • Product shape: 1524.51mm * 914.46mm
  • Product window: 1434.54mm * 809.06mm
  • Working environment: -20°C~+60°C
  • Storage environment: -30°C~+70°C.
  • Specification Table

Application:

  • Gaming Equipment;
  • Self-service solution;
  • Interactive Digital Signage;
  • Healthcare/Medical Equipment;
  • Traffic Information Self-checking solution;
  • Industrial/Factory Automation/Industrial Tablet;
